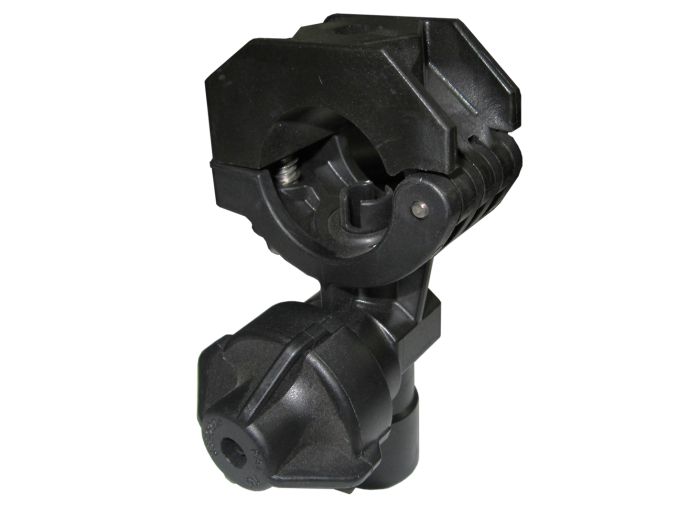

TeeJet Unique Nozzle Body for Rigid Pipes

ITEM#

IS TJQJ17560A3/4NYB-config

The unique nozzle body for rigid pipes is used to create a customized, versatile spraying system adapting to the needs of the industry.

Soyez le premier à commenter cet article

Disponible en ligne

Liquidation

À partir de 5,43 CAD$

Type de produit

Quantité

Livraison gratuite sur les produits standards pour les commandes en ligne de 200$ et plus

Dimensions & Spécifications

No. de produit	No. Fournisseur	To Clamp On
IS TJQJ17560A3/4NYB Choisir cette option	QJ17560A-3/4-NYB	3/4'' pipe (26.3–27.4 mm)		Choisir cette option
IS TJQJ17560A1NYB Choisir cette option	QJ17560A-1-NYB	1'' pipe (33–34.1 mm)		Choisir cette option

Détails

The unique nozzle body for rigid pipes is used to create a customized, versatile spraying system. It is used for all spraying types: herbicides, fungicides, insecticides, etc., and it links the water supply pipe to the nozzle of your choice. It is installed on a ¾'' or 1'' aluminium, PVC or polyethylene pipe. The body is equipped with an anti-drip system and its maximum spray pressure is 300 PSI (20 bar).

Use

Pre-drill 9.5 mm (3/8'') holes in the water supply pipe at the desired locations.
Open the bracket by removing the screw, position it on the pipe and close it firmly.
Insert the nozzle and gasketinside the nut with a ¼ turn. If required, a filter can also be added (see the tips tab).
Install the nut with a ¼ turn on the nozzle body.

Features

For installation on ¾'' or 1'' pipes.
Equipped with a ChemSaver® anti-drip system. A 10 PSI (0.7 bar) pressure is required to operate the nozzle.
The standard membrane is made of EPDM with optional Viton.
Installation on a 9.5 mm hole drilled in the pipe with maximum spray pressure of 300 PSI (20 bar).
The upper part of the bracket has a permanent hole for attachment on a flat surface.
