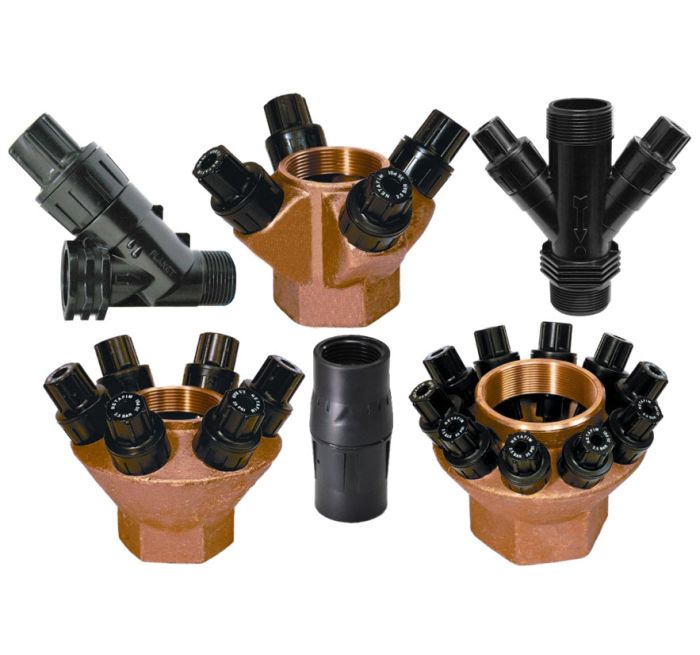

Pressure Regulator
ITEM#
IV PRV.75-LF15-config
The pressure regulators offer efficient solutions to topographical problems or up-stream variation. Regulators maintain a constant operating pressure.
Read More
Available online
Clearance
As low as
CAD$17.96
| Product No. | Manufacturer No. | Description | Pressure (PSI) | Flow range | ||
|---|---|---|---|---|---|---|
| IV PRV.75-LF15 Choose this option | 32PRV.75-LF15V2 | 3/4'' Low FLow | 15 | 0.25 to 4.4 gpm | Choose this option | |
| IV PRV.75-112 Choose this option | 32PRV.75-12V2K | 3/4'' | 12 | 5.5 to 17.6 gpm | Choose this option | |
| IV PRV1.5-212 Choose this option | 32PRV1.5-12V2K | 1-1/2'' X 2 Heads | 12 | 11 to 35 gpm | Choose this option | |
| IV PRV2-612 Choose this option | 32PRV2-612V2K | 2'' X 6 Heads | 12 | 33 to 105.6 gpm | Choose this option | |
| IV PRV3-1012 Choose this option | 32PRV3-1012V2K | 3'' X 10 Heads | 12 | 55 to 175 gpm | Choose this option |
Pressure Regulators are manufactured with non-corrosive, high quality plastic and brass, that withstands all fertilizers and chemicals in common use providing years of trouble-free operation. The one-piece sealed regulating unit - different for each pressure option - is field replaceable and easy to maintain. Available in several sizes, pre-set pressures, and flows from 0.25 to 175 GPM.
Applications
- For use in drip and sprinkler irrigation systems.
Product Advantages
- Provides instant response to variations in pressure assuring that outlet pressure will remain constant regardless of inlet pressure.
- Regulating unit has stainless steel spring and screw and EPDM rubber diaphragm creating a tight seal eliminating leakage.
- The rise versus the decline in outlet pressure has significantly decreased ensuring better hydraulic performance.
- Built-in operating indicator visually shows when proper outlet pressure is achieved.
- 3/4'' Low Flow is an improved in-line unit with female threaded connections, silicon diaphragm for no leakage and is sealed to regulate accurately at low flows.
