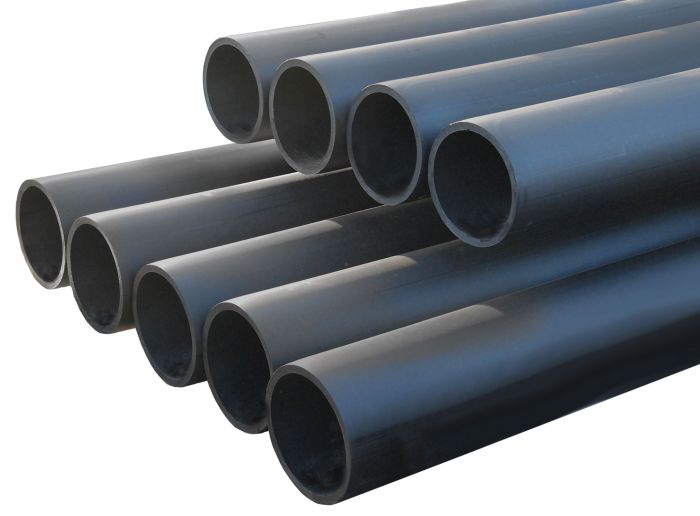

HDPE Water Pipes
ITEM#
IH DR1702500-Config
Due to the higher size of certain products, a request for shipping quote must be completed. You must add the item to your cart and confirm the quote request. Once calculated, we will send you the quote including the shipping costs.
Read More
Available online
Clearance
As low as
CAD$0.00
| Product No. | Dimension Ratio | Diameter | Length | Max. Pressure | ||
|---|---|---|---|---|---|---|
| IH DR1702500 Choose this option | DR17 | 2'' | 500' | 125 PSI | Choose this option | |
| IH DR1703040 Choose this option | DR17 | 3'' | 40' | 125 PSI | Choose this option | |
| IH DR1703050 Choose this option | DR17 | 3'' | 50' | 125 PSI | Choose this option | |
| IH DR1703250 Choose this option | DR17 | 3'' | 250' | 125 PSI | Choose this option | |
| IH DR1703500 Choose this option | DR17 | 3'' | 500' | 125 PSI | Choose this option | |
| IH DR1704040 Choose this option | DR17 | 4'' | 40' | 125 PSI | Choose this option | |
| IH DR1704050 Choose this option | DR17 | 4'' | 50' | 125 PSI | Choose this option | |
| IH DR1706025 Choose this option | DR17 | 6'' | 25' | 125 PSI | Choose this option | |
| IH DR1706050 Choose this option | DR17 | 6'' | 50' | 125 PSI | Choose this option | |
| IH DR1708050 Choose this option | DR17 | 8'' | 50' | 125 PSI | Choose this option | |
| IH DR1710050 Choose this option | DR17 | 10'' | 50' | 125 PSI | Choose this option | |
| IH DR1712050 Choose this option | DR17 | 12'' | 50' | 125 PSI | Choose this option | |
| IH DR1714050 Choose this option | DR17 | 14'' | 50' | 125 PSI | Choose this option | |
| IH DR1718050 Choose this option | DR17 | 18'' | 50' | 125 PSI | Choose this option | |
| IH DR2104040 Choose this option | DR21 | 4'' | 40' | 100 PSI | Choose this option | |
| IH DR2104050 Choose this option | DR21 | 4'' | 50' | 100 PSI | Choose this option | |
| IH DR2106050 Choose this option | DR21 | 6'' | 50' | 100 PSI | Choose this option | |
| IH DR2108050 Choose this option | DR21 | 8'' | 50' | 100 PSI | Choose this option | |
| IH DR2110050 Choose this option | DR21 | 10'' | 50' | 100 PSI | Choose this option | |
| IH DR2112050 Choose this option | DR21 | 12'' | 50' | 100 PSI | Choose this option | |
| IH DR2114050 Choose this option | DR21 | 14'' | 50' | 100 PSI | Choose this option |
HDPE water pipes are perfect for underground water circulation. Unlike PVC pipes, HDPE pipes are expansible, which brings many benefits:
- Resistance to more powerful water hammers;
- No frost damage (the expansible wall expands and contracts with no breakage).
Specifications
- Temperature: -50°C to 105°C
- Good flexibility
- No loss of water since pipe fusion is a durable process that does not degrade over time
- Does not deteriorate when in contact with corrosive chemicals (pH from 1 to 14), stony ground or ultraviolet rays
- Resist long-term internal pressure and external loads
Features
- The irrigation pipe adapts to your surroundings (slopes, obstacles, roads, etc.)
- Ideal technology for long runs
- Lower installation cost because it requires narrower ditches (reduced excavation) and fewer fittings
- Low resistance to liquid flow reduces pumping and operating costs
- Threading is available for saddle installation
